Product Introduction:
Very Narrow Aisle Racking (VNA) is the ultimate high-density storage solution that pushes the limits of space utilization. By utilizing specialized guided very narrow aisle trucks, this system reduces operating aisles to an incredibly narrow 1.5 to 1.8 meters.
Achieving remarkable space utilization of 70% or more, VNA racking represents the pinnacle of warehouse storage technology. This system is designed for operations requiring maximum storage density combined with selective pallet access, making it ideal for high-volume warehouses with limited space and high inventory turnover requirements.
Features of Very Narrow Aisle Racking:
- Maximum Space Utilization
Reduces aisle width to the absolute minimum, increasing storage capacity by up to 60% compared to conventional racking systems while fully utilizing building height. - Enhanced Operational Efficiency
Maintains direct access to every pallet while operating in ultra-narrow aisles, ensuring high throughput rates with selective pallet access capability. - Superior Guidance System
Features advanced rail guidance technology that ensures perfect alignment and safe operation of specialized forklifts in extremely confined spaces. - Requires Specialized Equipment

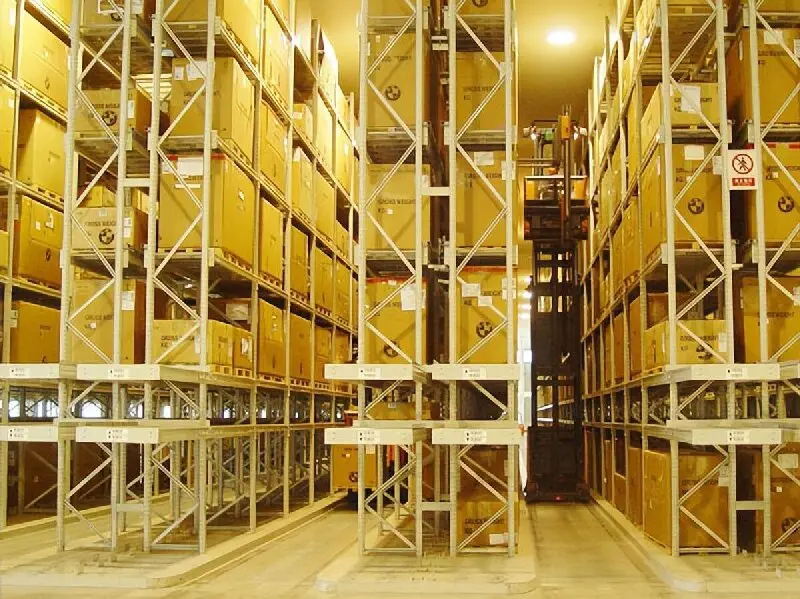

Dependent on guided very narrow aisle trucks that operate on fixed rails or wire guidance systems for precise navigation. - Demanding Installation Requirements
Requires exceptionally high standards of floor flatness and installation precision to ensure safe operation at significant heights.
Specifications:
We provide customized Very Narrow Aisle Racking solutions. The following are conventional specification parameters.
| Item | Specification Parameters |
|---|---|
| Racking Type | Very Narrow Aisle Racking (VNA) |
| Main Material | High-Strength Cold-Rolled Steel / Q235B Steel |
| Surface Treatment | Acid Pickling & Phosphating, Electrostatic Spray Painting |
| Column Specification | 120×95×2.5mm, 140×95×2.8mm, etc. |
| Beam Specification | P120×2.2, P140×2.5, P160×2.8, etc. |
| Load Capacity | 1000kg ~ 3000kg per level |
| Aisle Width | 1500mm – 1800mm |
| Racking Height | Typically 8 to 15 meters |
| Compatible Forklifts | Guided Very Narrow Aisle Trucks |
Essential Accessories & Facilities:

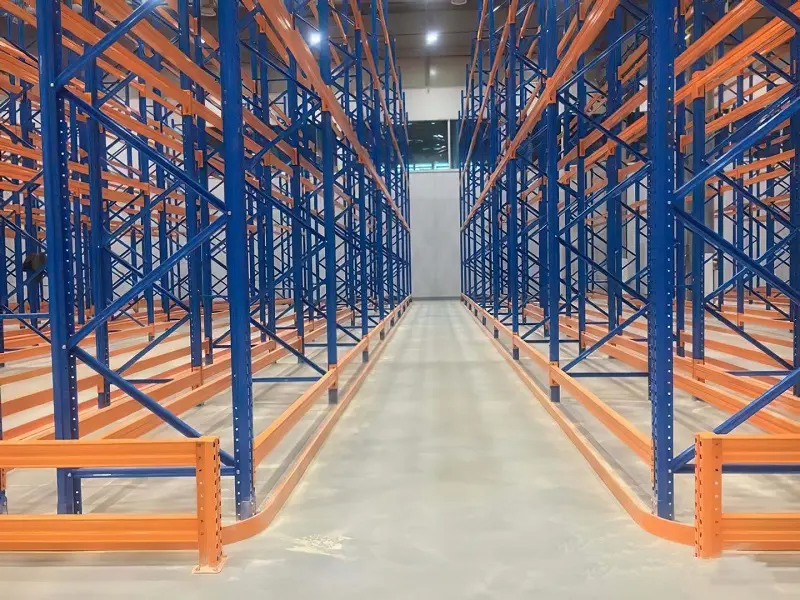

- Heavy-Duty Aisle Guide Rails (Mandatory)
- Reinforced Column Guards & Impact Protection
- Precision Warehouse Floor Leveling
- Wire Guidance System (Alternative to rails)
Application Scenarios:
Very Narrow Aisle Racking is the premier choice for the most demanding storage environments:
- Large-Scale Distribution Centers: Where maximizing every cubic meter of space is critical to operational economics.
- High-Value Goods Storage: Perfect for electronics, pharmaceuticals, and luxury items where space optimization directly impacts profitability.
- Temperature-Controlled Facilities: Maximizes valuable refrigerated or frozen storage capacity while maintaining access efficiency.
- Automotive and Aerospace Industries: Stores high-value components and parts in minimum space with complete inventory control.
- Metropolitan Logistics Hubs: Where real estate costs are prohibitive and vertical space utilization is mandatory for business viability.
