In an era of rising logistics costs and increasingly scarce land resources, maximizing the use of existing warehouse space has become key to reducing costs and improving efficiency for businesses. Traditional floor stacking and conventional heavy-duty racks can no longer meet the demands of efficient warehousing. This article introduces four advanced rack systems—narrow aisle racks, double-deep racks, drive-in racks, and shuttle racks—that can significantly improve warehouse space utilization, helping your business leverage “space” for greater efficiency.
Why Upgrade Your Rack System?
Low warehouse space utilization not only leads to high storage costs, limited capacity, but also results in inefficient operations. Upgrading to a professional rack system offers the following core benefits:
- Utilize Vertical Space: Make full use of the warehouse’s clear height, converting vertical space into actual storage capacity.
- Increase Storage Density: Optimize aisle layout and storage depth to reduce the waste of non-storage areas.
- Enable Efficient Operations: Standardize goods storage, improving inventory management accuracy and inbound/outbound efficiency.
- Ensure Operational Safety: Professional structural design ensures the stability of the storage system and operational safety.
Four Star Rack Systems for Significantly Improving Space Utilization
1. Narrow Aisle Racks – Reclaiming Space from Aisles
Narrow aisle racks are an intelligent upgrade to traditional heavy-duty racks, with the core advantage of significantly reducing the width of operational aisles.
- How It Works: By using specialized narrow aisle forklifts (e.g., very narrow aisle trucks), the aisle width can be reduced to around 1.6 meters, saving substantial floor space compared to the approximately 3 meters required for traditional racks.
- Space Advantage: While retaining all the advantages of heavy-duty racks, such as easy access and strong load-bearing capacity, space utilization can be improved by 30%-50% compared to traditional racks.
- Ideal For: Businesses with a wide variety of SKUs, frequent inbound/outbound operations, and high requirements for both warehouse space utilization and access efficiency, such as the FMCG, food, and cold chain industries.

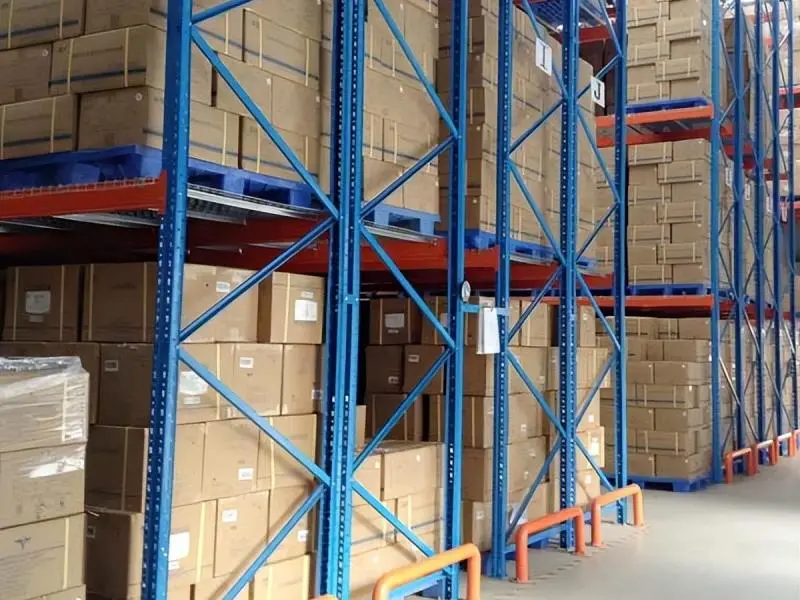

2. Double-Deep Racks – Simple yet Effective Storage Depth
Double-deep racks can be seen as an “extended version” of traditional heavy-duty racks, doubling storage depth through simple structural modifications.
- How It Works: The racks are designed to hold two pallets deep, requiring specialized double-reach forklifts or extended forklift attachments to access both pallets.
- Space Advantage: By reducing the number of internal aisles, space utilization can be improved by approximately 20%-30% compared to traditional single-deep racks. It is a cost-effective transitional solution for increasing density.
- Ideal For: Warehouses with relatively homogeneous goods, large batches, and operating on a “last-in, first-out” basis. It is an economical choice that balances storage density and access costs.

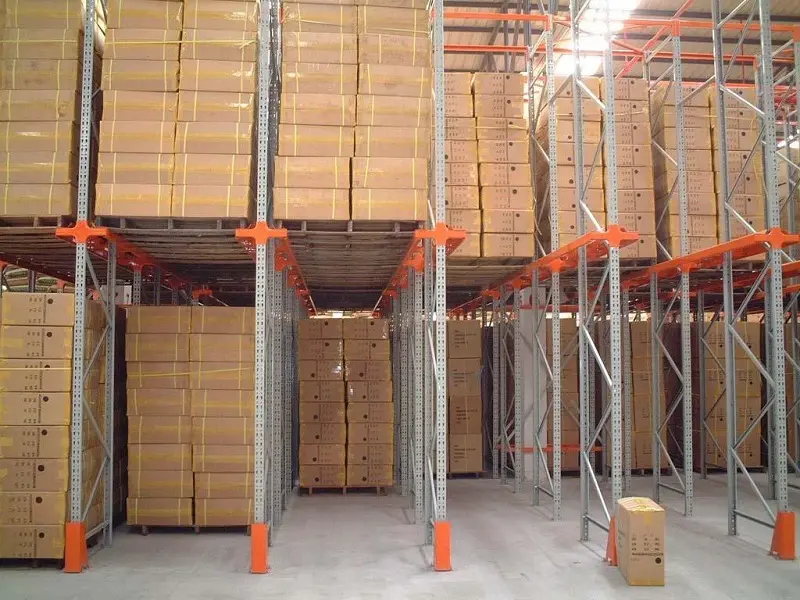

3. Drive-In Racks – Maximum Utilization as a “Rack Structure”
Drive-in racks are a continuous, integrated storage system without aisles between multiple rack rows. Forklifts can drive directly into the rack structure to access pallets, achieving high-density storage.
- How It Works: Using a cantilever rail design, pallets are stored sequentially within the rack structure, eliminating aisles between multiple rows and fully utilizing the warehouse’s vertical height and perimeter wall space.
- Space Advantage: Among all pallet rack systems, drive-in racks offer the highest space utilization, theoretically reaching over 85%.
- Ideal For: Storing large quantities of a few SKUs with low turnover or seasonal goods. Typically used in beverage, tobacco, and cold storage warehouses.
4. Shuttle Racks – Intelligence-Driven Dense Storage
Shuttle racks represent an automated and intelligent upgrade to drive-in racks, achieving a perfect combination of high density and high efficiency through the separation of “vehicle” and “rack”.
- How It Works: Wireless remote-controlled shuttle cars operate on rails within the rack structure, handling the tasks of transporting, storing, and retrieving pallets. Forklifts only need to replenish and transfer pallets at the aisle entrance, without entering the rack structure.
- Space Advantage: Inherits the high-density benefits of drive-in racks while enabling semi-automated operation, resulting in higher inbound/outbound efficiency, improved safety, and more precise inventory management.
- Ideal For: Similarly suited for large quantities of a few SKUs, but where higher requirements exist for inbound/outbound efficiency, accuracy, and inventory management. It is an ideal step towards automation for traditional warehouses.
How to Choose the Right Rack System for You?
These four rack systems each have their focus. Selecting the right one requires a comprehensive evaluation of your business needs:
- Access Method: Is strict “first-in, first-out” required? Double-deep, drive-in, and shuttle racks typically operate on a “last-in, first-out” basis.
- SKUs and Batch Size: A wide variety of SKUs with small batches may suit narrow aisle racks, while few SKUs with large batches are better for drive-in or shuttle racks.
- Budget and Efficiency: Double-deep racks have lower costs, while shuttle racks offer higher efficiency but require a larger initial investment.
- Warehouse Conditions: Physical conditions like clear height and floor load capacity also determine the suitability of the system.
Conclusion:
From narrow aisle racks that improve efficiency by reducing aisle width, to double-deep racks that trade depth for space, to the maximized utilization of drive-in racks, and the intelligent efficiency of shuttle racks, businesses have diverse options for high-density storage. Investing in the right rack system is a long-term investment in the core competitiveness of your logistics. Consult a professional storage planning expert today to diagnose your warehouse’s needs and tailor the optimal space optimization solution!
